How To Bend A Solid Brass Rod Properly?

Bending solid brass demands a precise balance of metallurgy and raw mechanical force. Unlike flexible hollow tubing, solid brass stock strongly resists deformation. It demands respect for its unique material properties. If you ignore these properties, you risk ruining expensive material.

This high resistance makes the metal susceptible to work-hardening, micro-fractures, or catastrophic snapping. Fabricators often destroy workpieces by bending them cold or using an improper radius. Material waste and rejected parts quickly drain production budgets. You must understand the science behind the alloy to avoid these costly failures.

This guide explores the technical realities of brass tempers. We compare manual techniques directly against industrial machinery. You will learn an evidence-based framework for executing perfect bends. By the end, you will know exactly how to maintain structural integrity and protect premium surface finishes.

Key Takeaways

• Alloy Selection Dictates Flexibility: Machining brass (like C360) is prone to cracking when bent; forming brass (like C260) is fundamentally better suited for structural curves.

• Annealing is Non-Negotiable for Tight Radii: Heating the rod to a dull red and cooling it alters the crystalline structure, temporarily softening the metal to prevent fracturing.

• Calculate Minimum Bend Radius: Standard engineering practice requires a bend radius of at least 1.5 to 2 times the rod’s diameter to avoid outer-wall tearing.

• Tooling Matches Scale: Manual vise jigs suffice for prototyping, but consistent commercial yields require dedicated rotary draw benders or CNC wire forming equipment.

The Metallurgy of Brass: Why Solid Rods Snap

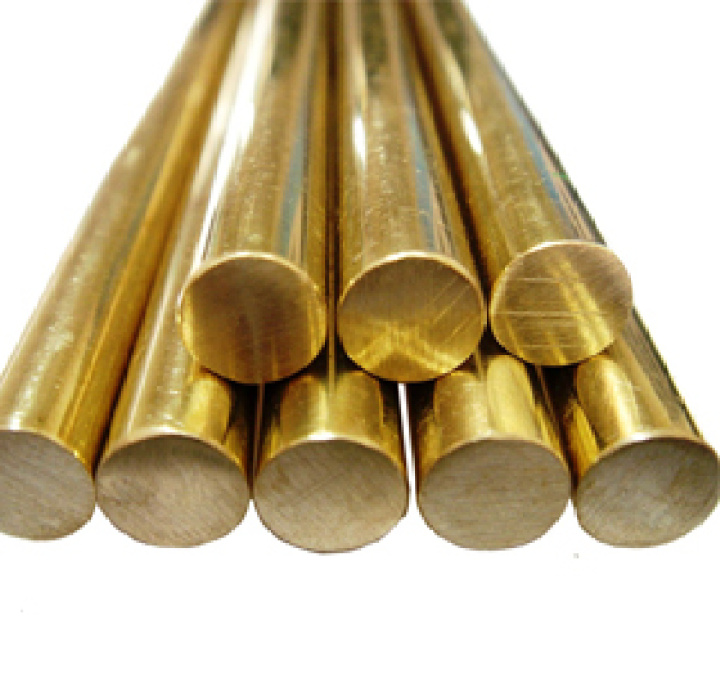

High scrap rates plague many fabrication shops. Operators often misunderstand brass tempers. They assume all brass bends equally well. This assumption severely compromises structural integrity. You must evaluate the specific grade before applying any force to a Brass Round Rod. Selecting the wrong alloy guarantees a high failure rate.

Evaluating Brass Grades

Brass is not a single, uniform metal. It is a diverse family of copper-zinc alloys. Each grade serves a distinct manufacturing purpose.

• C360 (Free-Machining Brass): This grade contains about 3% lead. Manufacturers add lead to act as an internal lubricant. It creates short, brittle chips during CNC lathing. However, this same lead content makes the metal highly brittle. It fractures easily under direct bending stress.

• C260/C272 (Cartridge/Yellow Brass): These grades feature higher copper content. They contain no intentionally added lead. They offer excellent cold-working properties. These alloys stretch and deform uniformly. They are ideal for forming and bending applications.

The Science of Work-Hardening

Bending fundamentally alters the internal grain structure. The metal grains compress on the inside curve. They stretch aggressively on the outside curve. This movement tightens the crystalline lattice. The metal becomes brittle immediately after initial manipulation. This phenomenon is called work-hardening. You cannot reverse this state by simply bending the metal back. Attempting to reverse a bend usually snaps the rod completely.

The Annealing Requirement

You must apply thermal treatment to restore ductility. Heating the brass to a critical temperature resets the grain structure. We call this process annealing. You need to heat the brass between 800°F and 1300°F. The metal should emit a dull red glow in dim lighting. Once it cools, the material softens temporarily. You can then form it safely without fracturing the outer wall.

Evaluating Bending Methods: Manual vs. Machinery

Fabrication shops must match their bending methods to their production scale. You must consider production volume, rod diameter, and precision requirements. Choosing the wrong method limits your throughput. It also creates unacceptable variances in your final product.

Manual Jigs and Vise Blocks

Manual methods rely on physical leverage. Operators bend the metal around a fixed fulcrum.

• Best for: Custom fabrication, low-volume prototyping, and diameters under 6mm (1/4").

• Limitations: Manual operations carry a high risk of inconsistent bend angles. Operator fatigue sets in quickly. Minor variations in pull speed alter the final radius. Manual setups often struggle to maintain a perfectly flat plane across multiple bends.

Rotary Draw and Roll Benders

These machines use mechanical advantage to force the metal around a specific die.

• Best for: Mid-to-high volume production and architectural hardware. They deliver precise, repeatable radii.

• Key Feature: The equipment utilizes precision dies. These dies support both the inner and outer radius simultaneously. This continuous support prevents the solid profile from flattening or kinking during the draw.

CNC Wire Forming Equipment

Computer numerical control brings automation to rod manipulation. This represents the peak of modern fabrication.

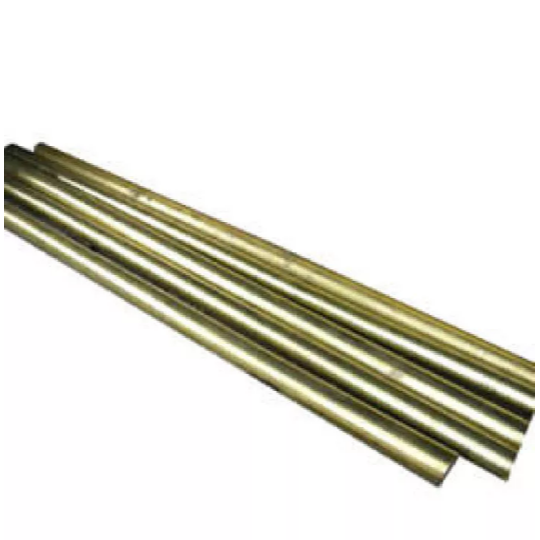

• Best for: Automated, continuous manufacturing. This is the optimal method when using Solid Premium Brass Rod Wire for Machinery.

• Advantages: CNC equipment provides high-speed throughput. It features programmable springback compensation. It also handles complex, multi-axis bending capabilities effortlessly. Operators load a continuous spool or straight lengths and retrieve finished parts.

Step-by-Step Implementation: Executing a Flawless Bend

You need a standardized operating procedure to minimize material waste. Inconsistent techniques ruin expensive stock. Follow these specific implementation realities to achieve perfect geometry every time.

1. Step 1: Calculate Minimum Bend Radius. You must establish a safe bending curve. Standard engineering rules dictate using a diameter multiplier. Typically, you need a bend radius of at least 2 times the outside diameter (2x OD). For example, a 1/2-inch rod requires a 1-inch minimum bend radius. Bending tighter than this multiplier tears the outer wall.

2. Step 2: Localized Annealing. Determine if your alloy requires thermal softening. If needed, heat the specific bend zone evenly using an oxy-acetylene or propane torch. Keep the flame moving to prevent melting. Allow the piece to cool slowly, or quench it in water. Quenching removes fire-scale faster but check your specific alloy data sheet first.

3. Step 3: Tooling Setup and Mar Prevention. Bare steel jaws scratch brass permanently. You must mask the rod. Use Delrin or nylon dies for your machinery. If bending manually, wrap the metal in thick leather. Preventing deep scratches saves hours of downstream polishing work.

4. Step 4: Continuous Force Application. Apply a slow, steady kinetic pressure. Never use sharp jerks or hammer blows. The metal grains need adequate time to slide and stretch uniformly. Smooth force yields a smooth curve.

Common Fabrication Risks and Quality Control

Even perfectly calculated operations encounter real-world friction. You must identify and mitigate factors causing rejected parts. Implement strong quality control checks at every workstation.

Springback Compensation

Brass naturally rebounds after releasing the bending force. It acts like a stiff spring. If you need a precise 90-degree angle, bending exactly to 90 degrees fails. It will relax back to 88 or 89 degrees. You must calculate this rebound. Over-bend the piece by 1 to 3 degrees. This ensures the metal settles perfectly at the target angle.

Surface Marring

Architectural applications demand pristine finishes. Traditional steel tooling ruins these surfaces instantly. You must prioritize mar prevention. Polishing out micro-abrasions costs significant labor time. Prevent them entirely by using non-marring tooling. Polyurethane pads and machined nylon rollers offer excellent protection.

Stress Cracking Detection

Micro-fractures compromise load-bearing strength. Sometimes these cracks remain invisible to the naked eye. Implement post-bend visual inspection techniques. Use dye penetrant testing for critical applications. You spray a red dye onto the bend, wipe it clean, and apply a developer. The developer pulls trapped dye from invisible cracks. It highlights structural failures instantly.

Sourcing and Shortlisting the Right Materials

Bending success starts in the purchasing department. You must specify materials correctly before a single tool touches the metal. Evaluate your supply chain using strict technical dimensions.

Temper Specifications

Brass ships in various temper states. You typically order "Half-Hard" or "Annealed" (Soft) states. Your choice depends on your processing capabilities. Half-hard stock offers great structural rigidity. However, it requires localized annealing before tight bending. Fully annealed stock bends easily right off the truck. Yet, it might lack the stiffness required for your final application.

Vendor Certifications

Never buy untraceable metal for structural projects. You must verify Mill Test Reports (MTRs). These documents confirm the exact alloy composition. They ensure you actually receive formable C260 instead of brittle C360. Furthermore, MTRs verify lead content. This guarantees your materials align with strict compliance standards like RoHS and REACH.

Next-Step Actions

Do not commit to a massive procurement contract blindly. Always request sample lengths first. Perform destructive bend testing in your own facility. Take a brass rod and push it past its limits. Bend it until it snaps. Document the failure point. This practical evaluation validates your tooling setup and confirms material reliability.

Conclusion

Bending a solid brass rod properly is rarely a brute-force operation. It remains a highly controlled process. You need the right alloy, appropriate thermal preparation, and scale-appropriate tooling. You must respect the metal's natural tendency to work-harden and spring back.

Start by calculating your bend radii accurately. Utilize localized annealing whenever pushing the structural limits of the rod. Protect the surface finish using nylon or leather masking. By following these precise steps, fabricators easily achieve complex geometries. You will maintain both the premium aesthetic and the critical structural integrity of your finished brass components.

FAQ

Q: Can I bend a 1/4" (6mm) solid brass rod without it snapping?

A: Yes, but a 1/4" solid rod is thick enough that it usually requires localized annealing before bending. Bending it "cold" at a tight radius will almost certainly cause micro-fracturing or complete breakage.

Q: Is it possible to bend a brass rod with bare hands?

A: This depends entirely on the diameter and temper. Very thin brass wire (under 2mm) or fully annealed rods can be manipulated by hand, but precision and consistency are impossible. For industrial applications, dedicated tooling is required.

Q: How do you bend a brass rod accurately without a professional bending tool?

A: For low-volume prototyping, you can use a sturdy bench vise, wooden or nylon bending blocks, and a customized jig. Using a pipe or wooden dowel as a fulcrum helps maintain a consistent inner radius and prevents sharp kinks.

Q: Does heating brass change its color or finish?

A: Yes. Annealing brass will cause oxidation, leaving a dark, discolored scale on the surface. This fire-scale must be removed chemically (via pickling) or mechanically (sanding and polishing) to restore the original brass finish.
