Step By Step Guide To Solder Copper Sheet

Joining expansive metals presents a distinct engineering hurdle unlike basic wiring or standard plumbing tasks. You will quickly find standard techniques fail because the base material acts as an aggressive thermal sink. Specifically, a copper sheet behaves like a massive radiator, rapidly pulling heat away from your joint before the alloy can fully melt and bond. Reliable soldering demands highly precise thermal management. It also requires correct alloy selection and application-specific material sourcing to avoid disastrous structural or electrical failures downstream.

This comprehensive guide outlines the exact technical process for conquering these intense thermal dynamics. We detail crucial equipment requirements, necessary chemical selections, and smart risk mitigation strategies for complex assemblies. You will learn the definitive step-by-step methods for joining these materials flawlessly, ensuring maximum durability and performance across both heavy industrial fabrication settings and delicate electronic manufacturing applications.

Key Takeaways

• Thermal Mass is the Primary Variable: Tooling must scale with sheet thickness; standard soldering irons fail on industrial-grade sheets due to rapid heat dissipation.

• Application Dictates Material: The choice between structural fabrication and electronics determines the required flux (acid vs. rosin) and solder alloy.

• Surface Preparation is Non-Negotiable: Mechanical abrasion and chemical cleaning are required to remove oxidation and ensure capillary action.

• Material Sourcing Impacts Yield: Specifying the correct copper grade reduces thermal warping and joint failure during production.

Evaluating Copper Sheet Specifications for Your Application

Successful joining begins long before you apply a heat source. Engineers must evaluate the base material specifications to ensure compatibility with the chosen soldering method. Selecting the wrong grade or thickness fundamentally compromises the integrity of the final joint.

Assessing Thickness and Thermal Dynamics

Gauge and thickness directly dictate the required British Thermal Unit (BTU) output of your heating equipment. Thin foils, often measured in ounces per square foot, require delicate heat control to prevent scorching. Conversely, heavy-gauge plates absorb massive amounts of thermal energy. As thickness increases, the metal draws heat away from the local joint at an exponential rate. You must match your heat source precisely to this thermal mass. Underestimating the heat sink effect leaves you with incomplete melting, while overestimating it causes severe distortion.

Structural vs. Electronic Requirements

Different industries demand entirely different material behaviors. You must classify your project into distinct categories to source the proper metal.

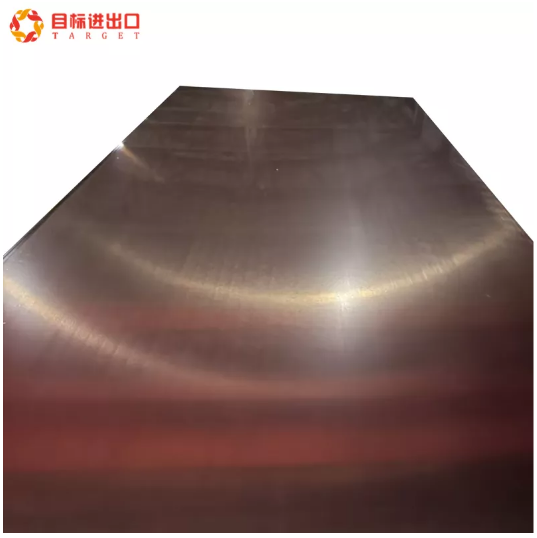

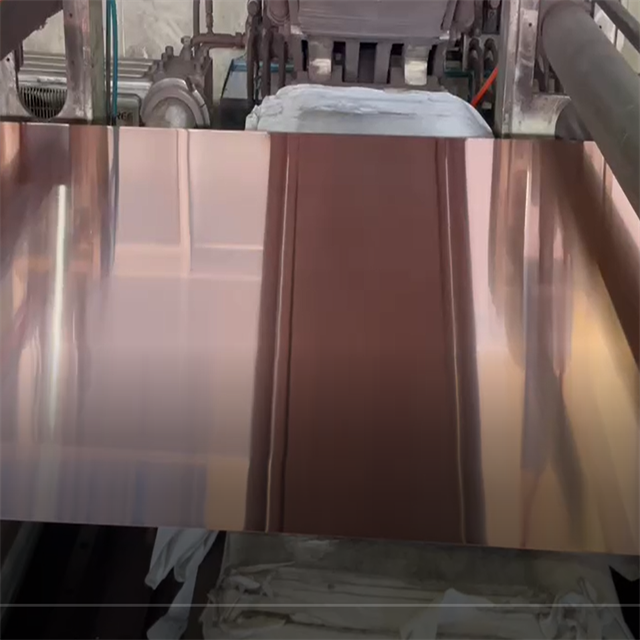

• Use Case A: Structural Integrity. When building heavy architectural elements or fluid enclosures, you need rigid materials. Selecting Flat Copper Sheet for Industrial Fabrication prioritizes mechanical strength. This material application withstands heavy mechanical loads and requires higher-temperature silver-bearing solders paired with highly active acid fluxes to achieve deep penetration.

• Use Case B: Electrical Conductivity. Electronic assemblies prioritize pristine signal transfer over raw physical strength. Specifying Super-Width Conductive Copper Sheet for PCB Manufacturing guarantees excellent electrical conductivity. These applications require strict rosin-core fluxes and eutectic alloys. Active acid fluxes would destroy sensitive circuit paths through long-term chemical corrosion.

Procurement Checklist

Implement a strict procurement checklist to eliminate production variables. Always verify the following criteria before accepting raw materials:

1. Surface Finish: Heavily oxidized or oiled surfaces require extensive pre-cleaning. Specify clean, bright finishes to reduce preparation time.

2. Temper: Annealed (soft) metals bend easily but may warp under localized heat. Hard-tempered metals resist bending but can release internal stresses during soldering, causing the entire assembly to bow.

3. Alloy Purity: Insist on high-purity standards like C11000 (Electrolytic Tough Pitch) or C10100 (Oxygen-Free Electronic). Trace impurities severely degrade solderability and electrical performance.

Essential Tooling and Chemical Requirements

You cannot overcome physics with inferior tools. High thermal conductivity means standard household electronics tools will underperform. You must deploy industrial-grade equipment tailored to the material dimensions.

Heating Equipment Selection

Choosing the correct heat source determines whether the alloy flows or clumps. You must evaluate your tools based on sustained thermal delivery.

• High-Mass Soldering Irons (100W+): Standard 40W pencil irons lose temperature the moment they touch the metal. High-mass irons (100W to 300W) store substantial thermal energy in oversized copper tips. They are excellent for thin foils, EMI shielding, or massive PCB grounding planes. The heavy tip maintains the necessary temperature curve during contact.

• Propane/MAPP Gas Torches: Torches remain mandatory for industrial fabrication and thicker sheets. You must use a flame to overcome the extreme heat sink effect. Propane burns cleanly and provides sufficient heat for medium gauges. MAPP gas (or propylene equivalents) burns significantly hotter, transferring heat faster and minimizing the total time the metal spends at elevated temperatures.

Flux Selection Logic

Flux acts as a chemical shield. It prevents oxygen from reacting with the heated metal and chemically etches the surface to promote bonding. However, you must match the flux chemistry to the end-use environment.

Solder Alloy Evaluation

Alloy choice impacts both the melting temperature and the final joint strength. Use lead-free plumbing solder (usually a blend of tin, antimony, and silver) for structural work. This alloy offers excellent gap-filling properties and high shear strength. For low-temperature PCB applications, choose a eutectic electrical solder. Eutectic alloys, such as 63/37 (Tin/Lead) or modern Sn-Ag-Cu equivalents, melt completely at a single distinct temperature. They do not pass through a sluggish plastic phase, preventing disturbed or weakened joints if the assembly vibrates during cooling.

Pre-Soldering Preparation and Fixturing

Skipping preparation guarantees failure. Contaminants act as physical barriers, preventing the molten alloy from wetting the base metal. You must establish rigorous cleaning and fixturing protocols.

Surface Deoxidation

Oxidation occurs naturally on exposed metal surfaces. You must strip this layer away immediately prior to heating. Begin with mechanical cleaning using abrasive non-woven pads or fine stainless steel wire brushes. Scour the mating surfaces until they shine brilliantly. Follow mechanical abrasion with strict chemical degreasing protocols. Wipe the area thoroughly using acetone or high-purity isopropyl alcohol to remove residual dust, manufacturing oils, and natural fingerprints. Do not touch the cleaned area.

Thermal Warping Mitigation

Metals expand drastically when subjected to heat. Localized heating causes localized expansion, forcing the surrounding cold metal to buckle or warp permanently.

• Secure Clamping: Use heavy-duty toggle clamps or C-clamps to lock flat parts into heavy steel welding tables. This physical restraint forces the metal to expand laterally rather than buckling upward.

• Strategic Heat Sinks: Place solid aluminum or steel blocks directly adjacent to the heat zone. These blocks absorb escaping thermal energy. They isolate the high temperatures, protecting adjacent sensitive components and minimizing the overall distortion footprint.

Flux Application

Apply flux immediately after cleaning. Brush on an even, controlled layer across all mating surfaces. Applying too much chemical causes violent boiling and excessive splatter, leaving corrosive residues in hard-to-reach areas. Applying too little causes the chemical to burn away prematurely during the prolonged heating cycle. The ideal application looks like a thin, unbroken wet film covering the entire target seam.

The Step-by-Step Copper Sheet Soldering Process

Execution requires smooth, deliberate movements. Mastery relies on reading the metal's temperature rather than watching the flame.

Step 1: Controlled Heating Execution

Strike the arc or ignite the torch away from the work area. Adjust the flame to achieve a tight, blue inner cone. Bring the heat source to the base metal, not the solder wire. Keep the heat source moving constantly in a sweeping motion. This broad movement ensures even heat distribution across the entire joint. Parking the flame in a single location guarantees localized scorching and severe warping.

Step 2: Testing Temperature

Never melt the alloy directly using the torch flame or iron tip. Instead, utilize the base metal to melt the material. Periodically touch the wire to the opposite side of the heated joint. If the metal has reached the correct thermal threshold, it will instantly liquefy the alloy upon contact. If the wire merely softens or sticks, withdraw it and continue sweeping the heat source.

Step 3: Capillary Action and Flow

Once the metal achieves the melting point, carefully feed the wire into the seam. Allow natural capillary action to pull the liquid alloy deep into the joint space. The molten material will chase the heat. Move your torch slowly along the seam, and the liquid will follow. Avoid over-application; a properly filled joint shows a subtle, concave fillet. Massive lumps indicate poor flow or excessive feeding.

Step 4: Cooling Protocol

Remove the heat source immediately once the seam fills. Allow the joint to air-cool completely undisturbed. Never move the assembly while the liquid solidifies. Furthermore, strictly avoid quenching the hot metal using water or wet rags. Rapid cooling shocks the crystalline structure, causing invisible micro-fractures deep inside the joint. These fractures will ultimately fail under mechanical stress.

Step 5: Post-Solder Cleaning

You must address residual chemicals immediately after the assembly reaches room temperature. Acid residues act as aggressive corrosives. Neutralize them rapidly using a warm water and baking soda solution, scrubbing vigorously with a stiff bristle brush. For electronic assemblies utilizing rosin flux, remove the sticky residue using specialized flux removers or heavy isopropyl alcohol to ensure a pristine, inspection-ready finish.

Troubleshooting Common Failures and Quality Assurance

Even strict adherence to protocols occasionally yields defects. You must learn to identify failure signatures and implement corrective actions rapidly.

Cold Solder Joints

A cold joint appears dull, crystallized, and heavily beaded. The alloy sits on top of the surface rather than flowing smoothly into it. This defect occurs due to insufficient heat or premature part movement during the cooling phase. To fix a cold joint, you cannot simply reheat it. You must mechanically remove the old material, thoroughly re-clean the surface, apply fresh flux, and re-execute the process utilizing a higher heat input.

Burned Flux and Blackening

If you see a thick, black crust forming around the joint area, you have burned the flux. Overheating the base metal or lingering too long in one spot incinerates the chemical shield. This burned carbon acts as an impenetrable barrier to liquid flow. You must stop immediately. Let the piece cool, aggressively grind away the carbonized residue, and restart the process utilizing faster, broader sweeping motions.

Warping and Distortion

Visible structural deformation often ruins aesthetic and mechanical tolerances. Warping results directly from aggressive, highly localized heating on thin gauges without adequate fixturing. To prevent future distortion, increase your pre-heating area. Warm the entire surrounding plate gently before concentrating heat on the seam. Additionally, upgrade your clamping fixtures and implement heavier aluminum heat sinks near the joining area.

Destructive and Non-Destructive Testing

Implement strict Quality Assurance testing before approving production batches.

• Visual Inspection: Good joints appear bright, smooth, and feature seamless, feathered edges where the alloy meets the base metal.

• Peel Testing (Destructive): For mechanical joints, physically tear a prototype sample apart. A successful bond forces the base metal to tear before the solder seam breaks.

• Conductivity Testing (Non-Destructive): For electrical paths, utilize a precision milliohm meter. Verify the joint adds zero appreciable resistance to the circuit path. High resistance indicates internal voids or severe oxidation trapping.

Conclusion

Mastering the joining process ultimately relies on dominating thermal physics and maintaining immaculate surface conditions. You must anticipate the massive heat sink effect and scale your heating equipment accordingly. Attempting short-cuts during surface deoxidation or flux application universally results in compromised, weakened assemblies.

Always remember material sourcing dictates the boundaries of your success. Starting with the correct alloy grade and temper drastically reduces downstream fabrication issues, minimizing dangerous warping and localized corrosion. We highly encourage you to review all material spec sheets thoroughly before beginning. Test multiple prototype joints to verify your equipment limits, or consult directly with your supplier to ensure your selected material aligns perfectly with your intended fabrication method.

FAQ

Q: Can I use a standard 40W electronics soldering iron on a copper sheet?

A: Generally, no. Unless working with ultra-thin copper foil, a standard iron cannot outpace the thermal dissipation of the sheet. The metal acts as a massive radiator, pulling heat away from the tip instantly. A high-wattage iron (100W+) or a gas torch is strictly required.

Q: What is the difference between soldering and brazing copper sheets?

A: Temperature and filler metal represent the primary differences. Soldering occurs below 840°F (450°C) and works best for electrical or low-stress mechanical joints. Brazing requires much higher heat and a different filler alloy, creating exceptionally high-strength joints intended for heavy structural fabrication.

Q: Why is my solder balling up and rolling off the copper sheet?

A: This indicates a total lack of capillary action. It is almost always caused by severe surface oxidation, a lack of sufficient flux, or the base metal failing to reach the correct melting temperature of the alloy.

Q: How do I prevent acid flux from corroding my industrial fabrication project over time?

A: Acid flux residues remain highly chemically active. You must aggressively wash them away using warm water and a neutralizing agent, like a heavy baking soda solution, immediately after the joint has cooled completely to room temperature.
