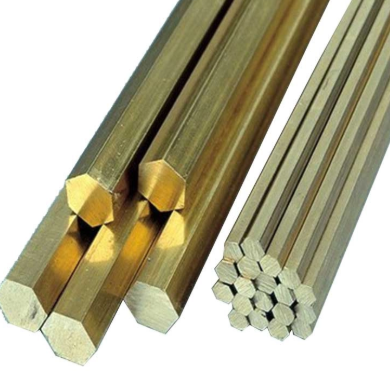

Brass Busbars for Industrial/Construction

Brass Busbar Material Specifications & Alloy Options

Available Brass Alloys and Corresponding Standards

Brass busbars are manufactured from a selection of wrought brass alloys to suit different conductivity and strength requirements. The available alloy grades include C21000, C22000, C23000, C24000, C26000, C26800, C28000, and C37700. Each grade conforms to established international standards: GB/T 4423-2007, JIS H3250-2006, EN 12163-98, ASTM B150M-03, ASTM B98M-03, and ASTM B151M-05. These standards define chemical composition limits, mechanical property thresholds, and dimensional tolerance classes for finished brass bar products.

Dimensional Range and Tolerance Levels

Standard cross-sectional shapes include flat, square, rectangular, and hexagonal profiles. Dimensional tolerances follow the grade-specific requirements of the standards listed above, with tighter tolerance classes available upon request for precision assembly applications.

Electrical and Mechanical Properties of Brass Busbars

Electrical Conductivity and Thermal Performance

Brass busbars serve as conductive paths in electrical distribution systems. Electrical conductivity varies by alloy grade: higher copper-content alloys such as C21000 and C22000 offer conductivity approaching 80-90 percent IACS at room temperature, while higher-zinc grades trade some conductivity for increased mechanical strength. Thermal conductivity follows a similar alloy-dependent pattern, making brass busbars suitable for applications where both current carrying and heat dissipation are relevant considerations.

Mechanical Strength and Formability

Tensile strength and hardness differ across the alloy range. Lower-zinc brasses offer greater ductility and are suited for bending and forming operations. Higher-zinc grades such as C28000 provide higher tensile strength and are selected for structural busbar arrangements subject to mechanical load. All alloys can be cut, drilled, and machined using standard metalworking equipment.

Surface Treatments and Custom Configurations for Brass Busbars

Tinning and Galvanizing Surface Options

Two surface treatment options are available to enhance corrosion resistance and contact performance. Tinned brass busbars feature a tin coating that improves solderability and maintains consistent surface conductivity over time. Galvanized surfaces provide a zinc layer for added corrosion protection in humid or outdoor installation environments. Untreated mill-finish brass busbars are also available for applications where surface coating is not required.

Custom Shapes and Fabrication Services

Beyond standard stock profiles, custom fabrication services include precision cutting to specified lengths, pre-drilled mounting holes, notches, and bent configurations. Custom cross-sections can be extruded based on provided drawings for volume orders. The minimum order quantity for brass busbars is 200 kilograms, with adjusted minimums applicable to custom-engineered profiles.

Industrial Applications of Brass Busbars

Power Distribution and Switchgear Systems

Brass busbars are installed in low-voltage and medium-voltage switchgear, distribution panels, and control cabinets where their conductive properties and corrosion resistance support long service intervals. They are also used in busway systems and grounding assemblies within industrial facilities.

Construction and Grounding Installations

In building construction, brass busbars function as main grounding conductors, lightning protection system components, and electrical riser conductors. Their corrosion resistance supports use in both interior and exposed exterior installations. Compatibility with standard copper and brass fittings simplifies on-site connection work.

FAQ

What is the minimum order quantity for brass busbars?

The standard minimum order quantity is 200 kilograms. Custom extruded profiles may require a higher minimum depending on tooling setup and production run length.

Which brass alloy is suitable for high-current applications?

Alloys with higher copper content, such as C21000 and C22000, provide higher electrical conductivity and are typically selected for high-current busbar applications.

Can brass busbars be supplied with pre-drilled holes?

Yes, pre-drilled mounting holes, notches, and other machined features can be added according to customer drawings. Hole positions and diameters are verified against drawing specifications before shipment.

What testing is performed before shipment?

Routine verification includes dimensional checks, surface inspection, and material composition confirmation against the ordered alloy grade. Additional testing such as conductivity measurement or tensile testing can be arranged upon request.
