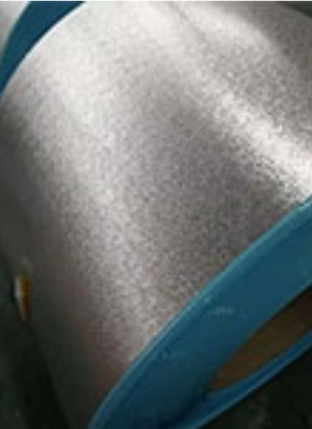

Aluminium sheet with PSMB coating

PSMB Coated Aluminum Sheet Specifications and Dimensions

Alloy Specifications and Material Standards

PSMB coated aluminum sheets are manufactured from ASTM B209 Alloy 3003 in the H14 temper condition. Alloy 3003 is a manganese-containing aluminum alloy that delivers improved corrosion resistance compared to commercially pure aluminum, making it suitable for exterior and industrial service environments. The H14 temper indicates strain-hardened material with intermediate hardness, balancing formability and structural rigidity.

Dimensional Range and Physical Properties

The standard production range for PSMB coated aluminum sheets includes thickness from 0.1 mm to 2 mm, and width from 200 mm to 1200 mm. Material is supplied in coil form for continuous processing applications, or cut to customized sheet lengths according to project requirements. Two surface textures are available: stucco embossed for insulation cladding applications, and smooth surface for general protective and decorative uses.

PSMB Coating Technology and Aluminum Surface Treatment

PSMB Coating Composition and Application Process

PSMB refers to Protective Surface Moisture Barrier coating, a multi-layer surface treatment applied to aluminum sheet substrates. The coating process begins with surface cleaning and pretreatment to ensure coating adhesion, followed by sequential application of corrosion-inhibiting primer layers and the top moisture barrier coat. Each layer is cured under controlled temperature conditions to achieve consistent film thickness and bonding strength.

Coating Performance Characteristics

The PSMB coating system forms a continuous moisture-resistant film across the aluminum sheet surface, acting as a barrier against water vapor, atmospheric humidity, and corrosive industrial contaminants. For insulation system applications, the coating prevents moisture penetration to underlying insulation materials while protecting the aluminum substrate from galvanic and environmental corrosion. Coating uniformity is maintained through controlled application equipment with thickness monitoring.

Quality Verification for Coated Sheets

Each production batch of PSMB coated aluminum undergoes coating thickness measurement, adhesion testing, and visual inspection for surface defects. Coating thickness readings are taken at multiple positions across the sheet width to confirm uniformity. Adhesion testing verifies that the coating remains bonded to the aluminum substrate under flexure and cross-hatch test conditions.

PSMB Coated Aluminum for Industrial Insulation and Equipment Protection

Refinery and Petrochemical Insulation Cladding

PSMB coated aluminum sheets serve as outer cladding for industrial insulation systems on refinery storage tanks, process piping, and vessel equipment. The moisture barrier coating prevents water ingress to fibrous insulation materials, maintaining thermal performance and preventing corrosion under insulation (CUI) conditions. The stucco embossed surface option is commonly specified for tank and pipe cladding due to its enhanced rigidity and concealment of minor surface imperfections.

Commercial and Industrial Building Applications

In commercial construction, PSMB coated aluminum is used for exterior wall cladding systems, roofing flashings, and facade elements where moisture resistance and material durability are required. The smooth surface finish is selected for architectural applications where uniform visual appearance is specified. Both stucco embossed and smooth surfaces are compatible with standard sheet metal fabrication operations including cutting, bending, roll forming, and fastening.

HVAC and Mechanical System Protection

Heating, ventilation, and air conditioning systems use PSMB coated aluminum sheets for ductwork exterior protection, equipment casing, and piping insulation cladding. The 3003 alloy base material withstands temperature variations encountered in HVAC service, while the PSMB coating provides protection against condensation and ambient humidity exposure. Coil-form supply is compatible with roll-forming production lines for duct and trim profiles.

Marine and Coastal Facility Uses

Coastal industrial facilities and marine infrastructure installations specify PSMB coated aluminum for exterior equipment protection and architectural elements exposed to salt-laden atmospheres. The combined corrosion resistance of 3003 alloy and the PSMB moisture barrier provides extended service life in humid and saline environments compared to uncoated aluminum sheet materials.

PSMB Aluminum Sheet Quality Standards and Procurement Information

Standard Compliance and Material Certification

All PSMB coated aluminum sheets are produced from base material conforming to ASTM B209 specifications for aluminum and aluminum-alloy sheet and plate. Raw material certificates documenting alloy composition and temper verification are available for each production batch. Coating process documentation can be provided for projects requiring traceability of surface treatment materials and application parameters.

Order Requirements and Production Schedule

The minimum order quantity for PSMB coated aluminum sheets is 200 kilograms. Standard production lead time is 15 to 25 working days from order confirmation, depending on selected thickness, width, surface type, and total order volume. Custom width slitting and length cutting services are available for orders requiring specific sheet dimensions.

Packaging and Delivery Options

PSMB coated aluminum coils are horizontally wrapped with protective outer packaging to prevent damage during storage and transit. Cut sheets are stacked with interleaved protective layers and palletized for shipment. Export packaging options include seaworthy wooden pallets with moisture barrier wrapping for ocean freight, and reinforced packaging for air transport consignments.

FAQ About PSMB Coated Aluminum Sheets

What does PSMB coating stand for and what is its purpose?

PSMB stands for Protective Surface Moisture Barrier. It is a multi-layer surface coating applied to aluminum sheets to create a moisture-resistant barrier that protects both the aluminum substrate and underlying insulation materials from water vapor and atmospheric moisture.

Is the PSMB coating suitable for outdoor exterior applications?

Yes, PSMB coated aluminum is designed for exterior service including industrial insulation cladding, building facades, and coastal installations. The 3003 alloy base combined with the moisture barrier coating provides corrosion resistance for outdoor exposure conditions.

Can PSMB coated aluminum sheets be formed or bent after coating?

Yes, the coating maintains adhesion during standard sheet metal forming operations including bending, roll forming, and cutting. Standard fabrication processes used for uncoated aluminum sheet are applicable to PSMB coated material.

What is the difference between stucco embossed and smooth surface options?

Stucco embossed surface has a textured, dimpled pattern that increases sheet rigidity and hides minor surface imperfections, commonly used for insulation cladding. Smooth surface provides a uniform flat finish specified for architectural and decorative applications.

Are custom dimensions available for PSMB coated aluminum sheets?

Yes, custom width slitting within the 200 mm to 1200 mm range and cut-to-length sheet sizes can be produced to order. Coil form supply is also available for customers with in-house processing equipment.
