Description

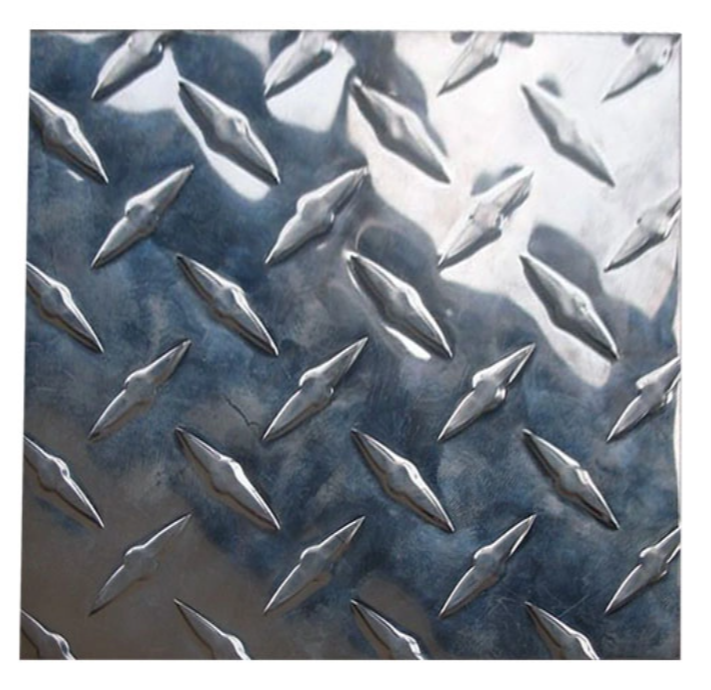

Aluminum checkered coil is a metal product engineered for anti-slip, structural, and decorative applications. It is produced from aluminum alloys including 1050, 1060, 1100, 3003, 5052, 5754, and 5086, with properties that support use across multiple industries. The product is available in various patterns and customizable dimensions, and complies with GB/T 3618, ASTM-B 209, and EN 1386 standards. It serves commercial procurement needs for projects requiring both functional performance and visual consistency.
The raised patterns on aluminum checkered coil increase surface friction, reducing slip risks in wet, oily, or icy conditions. This design addresses safety requirements for areas with frequent foot or vehicle traffic. Patterns include small five-bars, big five-bars, three bars, and diamond, each providing different levels of friction and visual appearance.
Aluminum checkered coil has a density approximately 1/3 that of steel, which simplifies transportation and installation processes. It maintains tensile strength sufficient to support heavy loads, making it suitable for platform and flooring applications. Alloys such as 5052 offer weldability, allowing for cutting, bending, and stamping without significant loss of structural integrity. The material resists corrosion from saltwater and chemical exposure, supporting use in harsh environments.
Unlike steel alternatives, aluminum checkered coil does not require rust prevention treatments. This reduces ongoing maintenance requirements and extends service life, lowering replacement costs over time. The material is fully recyclable, aligning with sustainability requirements for commercial and industrial projects.
Parameter | Details |
Alloy Grade | 1050, 1060, 1100, 3003, 5052, 5754, 5086 |
Thickness | 1.0-10mm (customizable within range) |
Width | 600-1900mm |
Length | 1000-4000mm (coil form available for continuous use) |
Pattern Type | Small five-bars, big five-bars, three bars, diamond |
Minimum Order Quantity (MOQ) | 200KGS |
Surface Treatment | Mill finish (customizable to bright finish or color coating) |
Temper | O, H111, H114, H24 (based on alloy and application) |
Standard Compliance | GB/T 3618, ASTM-B 209, EN 1386 |
The product is used for factory floors, machine platforms, loading ramps, and trench covers. Its anti-slip design supports worker safety in high-traffic, oily environments, while its load-bearing capacity enables efficient material handling. It also serves as flooring for chemical storage facilities, where corrosion resistance is required.
In construction, aluminum checkered coil is used for stair treads, elevator floors, roofing, and wall cladding. It provides anti-slip protection for commercial and residential buildings, and diamond patterns add visual appeal to architectural elements. Scaffolding planks made from this material reduce on-site labor intensity due to their low weight.
The coil is used for truck bed liners, trailer floors, ship decks, and offshore platforms. Its low weight contributes to fuel efficiency in vehicles, while its corrosion resistance supports long-term use in marine environments. It is also suitable for ambulance and public transport interiors, where easy cleaning and anti-slip performance are required.
Aluminum checkered coil is used for exhibition booths, retail displays, cabinet surfaces, and furniture accents. Different patterns add texture to interior and exterior design elements, while customizable sizes support unique project requirements.
Thickness, width, and length can be adjusted within the specified ranges to match project requirements. Coil form is available for continuous processing needs, supporting large-scale industrial applications.
Beyond standard patterns, custom raised patterns can be developed for specialized functional or decorative needs (minimum order applies). Surface treatments include bright finish, anti-slip coating, and color powder coating to enhance performance and aesthetics.
Value-added services include cutting, bending, welding, and stamping, delivering products ready for installation. For standard specifications, production and shipping take 7-15 working days. Custom orders are processed with clear timelines, and global logistics coordination ensures on-time delivery to any location.
For high-traffic industrial areas such as loading ramps, big five-bars or diamond patterns provide higher friction. For stair treads or decorative applications, small five-bars or three bars balance friction and visual appearance. Our team can provide pattern recommendations based on your specific use case.
Yes. All listed alloys, particularly 5052 and 5754, resist corrosion from rain, sunlight, and temperature fluctuations. This makes the product suitable for outdoor applications including roofing, signage, and patio flooring.
For standard alloys and patterns, the minimum order quantity is 200KGS to maintain production efficiency. For small-batch projects such as custom decor, contact our sales team to discuss available options.
Yes. A detailed installation manual covering cutting, fixing, and welding techniques is provided with each order. Our technical team is available for online or on-site consultation to resolve installation challenges.
