Aluminum Tread Plate/Aluminum Chequer Plate 3xxx Series

3xxx series aluminum tread plate (also referred to as aluminum chequer plate or aluminum pattern plate) uses manganese as the primary alloying element, producing a material with higher strength than pure aluminum while maintaining excellent corrosion resistance and workability. The raised pattern is formed during the rolling process, creating an anti-slip surface suitable for walking surfaces and structural applications. Both 3003 and 3105 alloys are available, with 3105 providing slightly higher strength due to increased magnesium content.

Aluminum Tread Plate 3003/3105 Technical Specifications

Temper selection depends on application requirements: O temper provides maximum formability for formed parts, while H22 through H26 tempers offer increasing strength levels for structural flooring applications. H114 temper is specifically produced for tread plate applications, providing optimized pattern definition and flatness characteristics. Pattern height ranges from 0.8-1.5mm above the base material, depending on base thickness and pattern type.

Aluminum Chequer Plate Pattern Types and Performance Characteristics

Five standard pattern configurations are available, each engineered for specific slip resistance requirements and loading conditions. All patterns are embossed into the material during final rolling passes, ensuring pattern adhesion to the base material without delamination.

Five Bar Pattern (Small and Large)

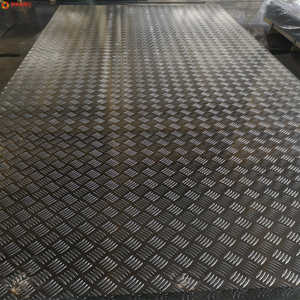

The five bar pattern (also called willow pattern) is the most widely specified tread plate pattern, featuring five parallel raised bars arranged at approximately 45 degrees to the sheet length. Small five bar pattern has bar spacing of 22mm, while large five bar uses 32mm spacing. This pattern provides a coefficient of friction of 0.6-0.8 under dry conditions when tested per ASTM D1894, making it suitable for general purpose walkways, stair treads, and vehicle flooring.

Three Bar Pattern

Three bar pattern features three wider raised bars per pattern repeat, providing increased load distribution capacity for heavy equipment traffic. This pattern is specified for industrial platform flooring, truck trailer floors, and loading ramps where point loading from forklift trucks or heavy equipment occurs. The wider bar profile reduces localized stress concentrations compared to five bar patterns.

Diamond and Hammered Patterns

Diamond pattern (also called pointer pattern) features individual diamond-shaped raised elements, providing multi-directional slip resistance for applications where traffic moves in multiple directions. Hammered pattern produces a uniform textured appearance with random indentations, used primarily for decorative applications requiring moderate slip resistance, such as wall panels, trim, and architectural features.

Mechanical Properties and Fabrication of Aluminum Tread Plate

3003 aluminum tread plate provides ultimate tensile strength ranging from 130-180 MPa depending on temper, with yield strength of 110-165 MPa and elongation of 5-30% in 50mm gauge length. 3105 alloy provides ultimate tensile strength of 140-200 MPa with yield strength of 125-185 MPa. Both alloys exhibit excellent atmospheric corrosion resistance without additional coating, though mill finish, anodized, or painted surfaces are available for specific applications.

Fabrication guidelines for industrial users: shearing operations require 5-8% clearance per side based on material thickness. Bending operations should be performed with the pattern surface on the outside of the bend to prevent pattern cracking, using a minimum inside bend radius of 2× base thickness for H24 temper. Welding can be performed using TIG or MIG processes with 4043 or 5356 filler wire, producing welds with approximately 80% of base metal strength. Cutting to size is available as a value-added service, with tight tolerance cutting to ±1mm dimensional accuracy using CNC plasma or saw cutting equipment.

Industrial Applications for Aluminum Pattern Plate

Aluminum tread plate serves multiple commercial and industrial applications where lightweight, corrosion resistance, and slip resistance are required:

Transportation industry: truck and trailer flooring, bus and rail car interiors, access steps

Construction: stair treads, access platforms, mezzanine flooring, roof walkway systems

Cold storage: freezer room flooring where non-sparking properties are required

Marine applications: ship decks, dock access, gangways (with appropriate alloy selection)

Equipment manufacturing: machine guards, access steps, work platforms

Architectural applications: decorative wall panels, entrance mats, trim elements

Weight calculation for aluminum tread plate follows the formula: Weight (kg/m²) = base thickness (mm) × 2.71 × 1.03 (pattern allowance), with the 3% addition accounting for the raised pattern material. This calculation provides theoretical weight within ±3% of actual scale weight.

Quality Assurance and Supply Capabilities

With 28 years of experience in non-ferrous metal supply, production facilities maintain in-house testing capabilities including tensile testing, hardness testing, surface roughness measurement, and flatness inspection. Each production lot is tested for chemical composition using optical emission spectroscopy to ensure conformance to alloy specifications. Flatness is controlled to within 2mm per meter length for material up to 3mm thickness, and 3mm per meter for heavier gauges.

Stock materials are maintained in common gauges (1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm) in standard five bar pattern for immediate shipment. Custom gauges, tempers, and patterns are available for production orders, with width up to 2400mm and length cut to customer requirements. Sample orders are accepted for material evaluation, with small pieces provided at no cost for qualification testing. OEM customization services include special patterns, protective film application, and pre-fabricated cut parts per customer drawings.

Export packaging uses fumigated wooden pallets with steel banding, with paper interleaving between sheets to prevent surface scratching during transit. Each pallet is marked with alloy grade, temper, thickness, pattern type, lot number, and gross weight for traceability. Mill test reports are provided with each shipment, including chemical analysis, mechanical property results, and dimensional inspection records.

FAQ About Aluminum Tread Plate

What slip resistance values does aluminum chequer plate provide?

Standard five bar aluminum tread plate provides a pendulum test value (PTV) of 55-65 under dry conditions and 35-45 under wet conditions when tested per BS 7976. Surface roughness Ra typically ranges from 25-40μm depending on pattern type. For applications requiring enhanced slip resistance, additional surface treatments or coated finishes are available.

Can aluminum tread plate be used in coastal or marine environments?

3003 and 3105 aluminum alloys provide good atmospheric corrosion resistance in coastal environments. For continuous saltwater immersion or marine applications, 5052 or 5083 alloy tread plates are recommended, with appropriate sealing or anodizing treatment for extended service life.

What is the standard sheet size available from stock?

Standard stock sizes include 1220×2440mm (4×8 feet) and 1500×3000mm in common gauges from 1.5mm through 6.0mm thickness. Custom widths up to 2400mm and custom lengths up to 6000mm are available for production orders.

Does the pattern side go up or down during installation?

The raised pattern side is installed facing up to provide the slip-resistant walking surface. For structural applications where the plate is bonded to a subfloor, the smooth side is placed against the subfloor with the pattern side exposed to traffic.
