Prepainting Aluminum Coil /Color coated aluminum sheet 5xxx Series

5052 aluminum coil belongs to the 5xxx series aluminum-magnesium alloy family, containing approximately 2.5% magnesium as the primary alloying element. This composition provides higher strength than 1xxx and 3xxx series alloys while maintaining good formability and corrosion resistance. The material undergoes continuous roller coating processes to apply organic coatings on one or both surfaces, producing a finished product ready for fabrication without additional surface treatment.

Prepainted Aluminum Coil 5052 Technical Specifications

Different temper conditions provide varying mechanical properties for specific applications. O temper offers maximum formability for deep drawing operations, while H14 and H18 tempers provide increased strength for structural components. H32 through H38 tempers undergo stabilization treatment to reduce age softening during storage and processing.

Coating System Options for Color Coated Aluminum Sheet

Three coating systems are available, each formulated for specific environmental conditions and expected service life. Coating thickness is controlled within ±2μm tolerance during application, with total dry film thickness measured at multiple points across the coil width.

Polyester (PE) Coating

PE coatings use a thermosetting polyester resin system with a dry film thickness of 16-25μm. This coating provides good color retention and formability for interior applications and exterior environments with moderate UV exposure. Expected service life ranges from 5-8 years under normal atmospheric conditions. PE coatings are suitable for interior decoration, ceiling systems, and signage applications.

PVDF Coating

PVDF (polyvinylidene fluoride) coatings contain 70% fluoropolymer resin by weight, with a dry film thickness of 25-35μm. This system provides resistance to UV degradation, chalking, and chemical exposure, with expected service life of 15-20 years in exterior applications. PVDF coated aluminum coil is specified for roofing systems, exterior wall cladding, and coastal environment applications where corrosion resistance is required.

CRAFTED Coating

The CRAFTED coating system provides specialized textured and patterned finishes for decorative applications. This system includes matte, brushed, embossed, and wood-grain effects, with coating formulations adjusted to match specific appearance requirements while maintaining adhesion and formability properties.

Quality Control and Production Processes for Prepainted Aluminum Coil

The continuous coil coating line operates at line speeds of 30-80 meters per minute, with six sequential processing stages: alkaline cleaning, water rinsing, chromate conversion coating, primer application, finish coat application, and curing ovens maintained at 224-232°C metal temperature. Each production lot undergoes standardized testing: coating adhesion testing per ASTM D3359 (cross-hatch method), pencil hardness testing per ASTM D3363, impact resistance testing, and color difference measurement with ΔE controlled below 2.0 units.

Thickness measurements are taken at 50-meter intervals using beta gauges, with width tolerance maintained at ±0.5mm for narrow coils and ±1.0mm for widths exceeding 1500mm. Coils are wrapped in moisture-resistant polythene film with inner paper interleaving before packing on wooden pallets with steel strapping for ocean transport.

Industrial Applications and Fabrication Guidelines

Prepainted 5052 aluminum coil serves multiple commercial sectors:

Roofing and standing seam roof systems in commercial construction

Exterior wall cladding and curtain wall panels

Interior wall panels and ceiling systems

Electronic equipment enclosures and appliance panels

Transportation interior panels for commercial vehicles

Signage and display systems

Fabrication notes for industrial users: bending operations should use a minimum inside bend radius equal to 1.5× material thickness for H14 temper and 0.5× thickness for O temper. Roll forming operations require tooling polished to 0.8μm Ra surface finish to prevent coating marring. Cutting tools should be carbide-tipped to maintain edge quality and prevent coating delamination. Storage conditions require dry, covered warehouses with temperature maintained between 10-30°C to prevent moisture entrapment between coil wraps.

Ordering Information for Commercial Procurement

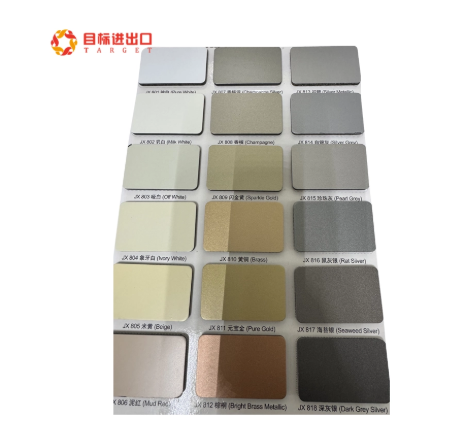

Sample orders are accepted for material qualification testing, with A4 size samples provided free of charge and freight collected. OEM custom color matching is available based on RAL, Pantone, or customer-supplied color samples, with color matching approval required before mass production. Stock materials are available in standard colors (white, gray, black, red, blue) for immediate shipment within 7 working days. Production orders require 15-20 working days lead time after order confirmation and deposit receipt.

Third-party inspection by SGS, BV, or other independent agencies is available upon request at the time of order placement. Mill test reports (MTR) are provided with each shipment, including chemical composition, mechanical properties, and coating test results. Export packaging meets ISPM 15 heat treatment requirements for international shipping.

FAQ About Prepainted Aluminum Coil

What is the minimum order quantity for custom colors?

Custom color matching requires a minimum production quantity of 2500 KGS per color, which is approximately 5-8 tons depending on material thickness. Smaller quantities may be available from stock colors, with 300 KGS minimum for stock items.

Can the coating be post-formed without cracking?

All PE and PVDF coatings are formulated for post-formability. T-bend testing per ASTM D4145 achieves 0T to 2T performance depending on coating thickness and temper, allowing fabrication of roofing panels and formed parts without coating cracking when proper bend radii are maintained.

What is the color consistency between production lots?

Color difference between production lots is controlled to ΔE < 2.0 units measured by spectrophotometer, which is below the threshold for visible color difference under standard lighting conditions. Color master samples are retained for 2 years for production reference.

Is protective film applied to the coated surface?

A removable polyethylene protective film is applied to the finish surface as standard, with adhesion levels adjusted for different fabrication methods. The protective film should be removed within 6 months of installation and should not be exposed to direct sunlight for extended periods to prevent adhesive residue.
