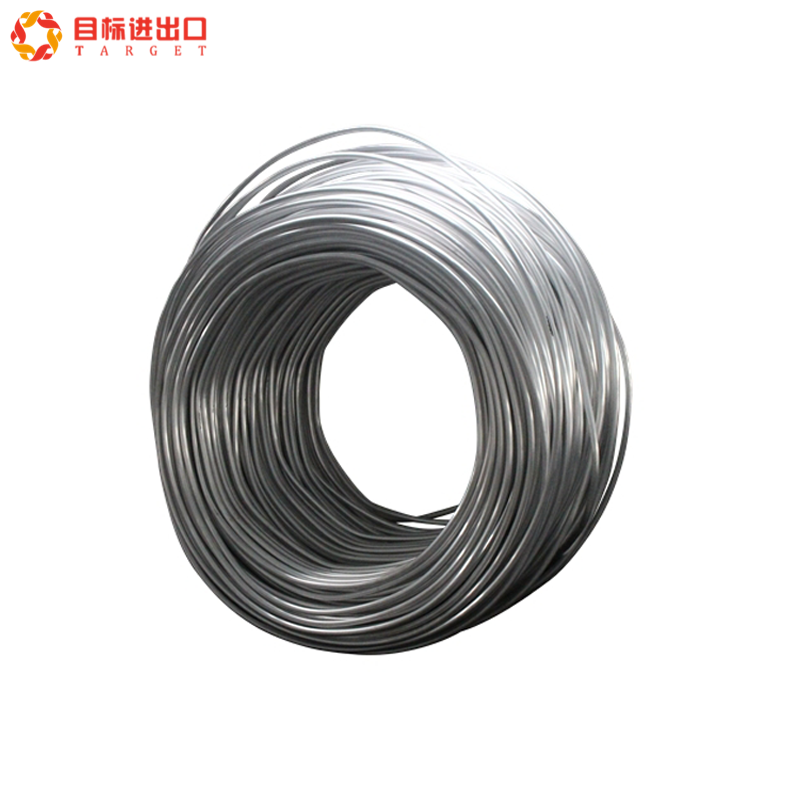

Aluminum Wire Size Guide for Electrical Projects

Selecting the correct conductor for electrical installations requires balancing material efficiency with strict technical safety standards. Engineers and electricians frequently specify aluminum conductors for heavy feeders and service entrances due to significant material weight reduction at scale. However, this material choice introduces strict technical requirements for safe installation. Aluminum possesses different conductivity, thermal expansion, and oxidation properties compared to copper. Improper sizing, incorrect insulation specification, or poor termination practices lead to catastrophic failure, code violations, and fire hazards. This guide provides a definitive framework for evaluating, sizing, and specifying conductors to ensure complete compliance with National Electrical Code (NEC) standards. By understanding the specific metallurgical properties of modern alloys, applying correct ampacity derating formulas, and executing precise termination techniques, professionals achieve long-term reliability in their electrical infrastructure.

• Ampacity Adjustments: Aluminum requires a larger American Wire Gauge (AWG) size to carry the same current as copper due to its inherently lower conductivity.

• Alloy Selection Matters: Differentiate between historical utility-grade alloys (like 1xxx series aluminum wire) and modern building-grade alloys (8000 series) required for current code compliance.

• The 5 Sizing Factors: Wire selection is dictated by ambient temperature, insulation rating, conductor bundling, continuous load requirements, and termination temperature limits.

• Termination Integrity: The success of an aluminum installation hinges entirely on using CO/ALR-rated devices, proper torque specifications, and anti-oxidant compounds.

• Optimal Use Cases: Aluminum is highly cost-effective for heavy feeders, service entrances, and high-amp subpanels, but generally impractical for standard 15A/20A residential branch circuits.

The Technical Case for Aluminum Wire in Electrical Projects

A successful electrical installation is defined by strict code compliance, minimal voltage drop across long runs, absolute thermal stability at termination points, and overall material efficiency. Achieving these criteria requires a deep understanding of the physical and electrical properties of the conductors being installed. While copper has long been the default standard for residential branch circuits, bulk power distribution relies heavily on alternative metals that offer better scalability.

The primary engineering challenge lies in the conductivity trade-off. Aluminum is approximately 61% as conductive as copper. This objective reality means that to carry an equivalent electrical load, an Aluminum Wire must be upsized by one or two AWG sizes compared to its copper counterpart. For example, a 100-amp subpanel might require a 3 AWG copper conductor. Utilizing aluminum necessitates stepping up to a 1 AWG conductor to safely manage the same ampacity without exceeding thermal limits.

This increase in diameter introduces distinct weight versus volume dynamics. While the conductor itself requires a larger physical footprint, aluminum is significantly lighter than copper. A larger wire gauge demands larger conduit sizing to maintain acceptable fill ratios, which complicates tight routing. However, the reduced weight drastically lowers pull tension during installation. Pulling a 500 kcmil copper conductor through 300 feet of underground PVC requires massive mechanical tuggers and puts immense strain on the conduit joints. Substituting a larger aluminum equivalent cuts the physical weight by more than half. This minimizes the physical strain on installation crews and reduces the structural load on cable trays, hangers, and overhead supports. This weight advantage becomes increasingly critical in long-distance commercial feeders and vertical riser installations in multi-story buildings.

Understanding Aluminum Wire Grades, Insulation, and Specifications

Not all aluminum conductors are manufactured for the same applications. The metallurgical composition of the wire dictates its mechanical flexibility, thermal expansion rate, and ultimate safety in a given environment. Understanding these alloy grades is non-negotiable for code-compliant installations.

1xxx Series and Utility Applications

The 1350 alloy represents the standard for high-purity utility applications. Comprising 99.5% pure aluminum, this alloy offers excellent conductivity and high corrosion resistance. However, it is relatively soft and susceptible to cold flow. Cold flow is a phenomenon where the metal slowly deforms under continuous mechanical pressure, such as inside a terminal lug. Because of these mechanical limitations, 1xxx series aluminum wire is primarily restricted to utility applications, overhead transmission lines, and heavy industrial busbars. It is strictly prohibited for indoor residential or commercial building wiring under modern electrical codes.

Modern 8000 Series Alloys

To resolve the mechanical issues associated with high-purity aluminum, the industry transitioned to the 8000 series alloys (such as AA-8000) for all building wire. These modern alloys incorporate trace amounts of iron, copper, and magnesium, significantly increasing the tensile strength and mechanical stability of the conductor. The 8000 series is specifically engineered to mitigate the creep, cold flow, and thermal expansion issues that plagued older installations from the 1960s and 1970s. When installed correctly, 8000 series aluminum performs with the same reliability as copper.

Metallurgical Comparison of Conductor Alloys

Insulation Types: THHN, XHHW-2, and SER/SEU

The outer jacket of the conductor dictates its permissible application environment. Standard indoor THHN/THWN-2 insulation features a PVC jacket with a nylon coating, suitable for dry or wet locations depending on the exact rating. However, XHHW-2 is generally preferred for large aluminum conductors. XHHW-2 utilizes cross-linked polyethylene (XLPE) insulation, providing superior resistance to abrasion, moisture, and extreme temperatures. XLPE is thermoset, meaning it will not melt and deform under high heat like thermoplastic PVC.

For residential service entrances and heavy appliance circuits, SER (Service Entrance Cable, Round) and SEU (Service Entrance Cable, Unarmored) are standard. These multi-conductor cables bundle 8000 series aluminum conductors within a durable outer sheath. Conversely, aluminum is rarely used in modern non-metallic sheathed cable (NM-B or Romex) for standard 15A/20A branch circuits due to the physical difficulty of routing thick aluminum conductors into standard device boxes.

Evaluating Manufacturing Standards

Procuring safe materials requires verifying adherence to strict manufacturing standards. ASTM International dictates the metallurgical composition, tensile strength, and baseline conductivity requirements. Concurrently, Underwriters Laboratories (UL) tests the finished product for thermal stability, insulation integrity, and flame retardance. Specifying UL-listed and ASTM-compliant conductive aluminum wire ensures the material meets the baseline safety and performance metrics required by the NEC.

Aluminum Wire Size and Ampacity Chart (AWG)

Accurate sizing requires consulting standardized ampacity tables, specifically NEC Table 310.16. Reading the AWG chart involves mapping the standard wire sizes—ranging from 6 AWG up through 4/0 and into circular mils (kcmil)—to their baseline current-carrying capacities under specific temperature conditions.

Standard Ampacity Ratings for 75°C Terminations

The 5 Factors Influencing Ampacity

Selecting the correct gauge is not as simple as reading a single column on a chart. Five distinct variables dictate the final wire size required for a safe installation:

1. Base Ampacity: The raw current-carrying capacity of the conductor in free air at a standard temperature.

2. Ambient Temperature: The surrounding air temperature where the wire is installed. High heat reduces the conductor's ability to dissipate its own thermal load.

3. Conductor Bundling: The number of current-carrying conductors packed into a single raceway or conduit. More wires mean trapped heat, requiring ampacity reduction.

4. Continuous Loads: The NEC mandates that continuous loads (running for 3 hours or more) must be calculated at 125% of their actual draw to prevent prolonged thermal stress on the breaker and wire.

5. Equipment Terminal Ratings: The temperature rating of the weakest link in the circuit—usually the breaker lugs or equipment terminals.

Temperature Ratings and Insulation Limits

Insulation types are rated for maximum operating temperatures, typically 60°C, 75°C, or 90°C. While modern XHHW-2 or THHN wire is rated for 90°C, the actual allowable ampacity is almost always restricted by the termination points. Most modern circuit breakers and equipment lugs are rated for 75°C. The NEC requires installers to use the lowest temperature rating of any connected device, wire, or terminal in the circuit. Therefore, even if you pull 90°C wire, you must size the conductor based on the 75°C column in the ampacity chart to prevent overheating the breaker terminals. You can use the 90°C column for derating calculations, but the final ampacity cannot exceed the 75°C terminal limit.

Derating Factors

Mathematical adjustments are mandatory when installation conditions deviate from standard baselines. If conduit is routed across a sun-exposed rooftop, the ambient temperature inside that conduit will spike, requiring an ambient temperature correction factor that reduces the wire's allowable ampacity. Similarly, if more than three current-carrying conductors are pulled through a single conduit, a fill derating factor must be applied. For example, pulling four to six conductors requires derating the wire to 80% of its baseline ampacity. If you run four 4/0 aluminum conductors through a rooftop conduit in 110°F weather, you must apply both the ambient temperature multiplier and the 80% bundle adjustment. These calculations ensure the insulation does not melt under combined ambient and operational heat.

Voltage Drop Considerations

Over long distances, the natural resistance of the metal causes a drop in voltage. The NEC recommends a maximum voltage drop of 3% for branch circuits and 5% overall for combined feeder and branch circuits. To calculate voltage drop, engineers use the formula: VD = (2 × K × I × D) / CM, where K is the specific resistance of aluminum (typically 21.2), I is the current, D is the one-way distance, and CM is the circular mil area of the wire.

Consider a 200-foot run of 4/0 aluminum carrying 150 amps on a 240V system. The circular mil area for 4/0 is 211,600. The calculation is (2 × 21.2 × 150 × 200) / 211,600. This equals 1,272,000 / 211,600, resulting in a 6.01-volt drop. Dividing 6.01V by the 240V source yields a 2.5% drop. Because this is under the 3% threshold, the 4/0 conductor is perfectly sized for this distance. If the calculated drop exceeded 3%, the conductor would need to be upsized to 250 kcmil, regardless of its ampacity rating.

Sizing Aluminum Wire for Electrical Use: Application Framework

Executing a safe installation requires a systematic approach to specification. Selecting the right aluminum wire for electrical use demands strict adherence to a step-by-step sizing logic.

Step-by-Step Sizing Logic

Begin by calculating the total maximum load of the circuit. Next, determine if the load is continuous; if so, multiply the continuous portion by 1.25. Take this adjusted amperage and consult the 75°C column of the NEC ampacity chart to find the baseline AWG. Apply any necessary derating factors for ambient temperature or conduit fill. Verify that the selected wire size does not exceed the 3% voltage drop threshold for the length of the run. Finally, confirm that the physical diameter of the chosen wire complies with conduit fill capacity limits outlined in NEC Chapter 9, Table 1.

Residential Service Entrances and Subpanels

For residential applications, aluminum is the industry standard for service entrances. Under NEC Section 310.12, residential services supplying the entire load of a dwelling are granted a specific exception allowing slightly smaller conductors due to load diversity. A standard 100-amp service typically utilizes 2 AWG aluminum. A 150-amp service requires 2/0 AWG aluminum. For a modern 200-amp residential service, 4/0 AWG aluminum is the standard specification. This sizing logic applies strictly to main service feeders and not to dedicated continuous-load branch circuits.

Commercial and Industrial Feeders

Commercial installations demand high scalability. For services exceeding 400 amps, routing a single massive conductor becomes physically impractical due to extreme stiffness and massive conduit requirements. Instead, engineers utilize paralleled aluminum conductors. By running two sets of 250 kcmil aluminum wires in parallel, installers achieve a 400-amp rating while maintaining manageable wire flexibility and optimizing the ampacity per square inch of conduit. Paralleling requires exact length matching and specialized termination blocks to ensure current divides equally between the conductors. If one wire is cut shorter than the other, the resistance changes, causing one conductor to carry more current and overheat.

High-Draw Appliances

Dedicated heavy-load circuits, such as HVAC condensers, electric furnaces, and Level 2 EV chargers, are viable candidates for aluminum wiring. The primary consideration is the availability of compatible lugs. Most standard EV charger terminals are designed exclusively for copper. Using aluminum requires installing a heavy-duty disconnect box near the appliance, terminating the aluminum run into dual-rated lugs, and jumping a short copper whip to the final equipment. This approach leverages the material efficiency of aluminum for the long home run while ensuring safe, compatible terminations at the appliance.

Legacy Residential Branch Circuits

During the 1960s and 1970s, 12 AWG and 10 AWG aluminum were heavily used for standard 15A and 20A residential lighting and outlet circuits. Modern code heavily restricts new aluminum branch wiring due to historical fire risks associated with improper terminations. When renovating legacy systems, replacing the wire entirely is optimal but often destructive. The safe, code-compliant alternative is retrofitting the system using AlumiConn mechanical connectors or specialized CO/ALR (Copper/Aluminum Revised) switches and receptacles. Standard wire nuts must never be used to splice legacy aluminum branch circuits.

Implementation Risks and Mitigation Strategies

The physical characteristics of aluminum demand meticulous installation practices. Failure to mitigate its unique metallurgical behaviors guarantees premature connection failure.

Managing Thermal Expansion and Cold Flow

Aluminum has a significantly higher coefficient of thermal expansion than copper or steel. As current flows, the wire heats up and expands. When the load drops, it cools and contracts. Over time, this microscopic movement causes the wire to loosen within the terminal lug. Furthermore, aluminum exhibits cold flow, meaning it will slowly deform and permanently flatten under constant pressure. To combat this, the NEC strictly mandates the use of calibrated torque wrenches for all terminations. Tightening a lug by feel is a severe code violation. Installers must apply the exact inch-pounds of torque specified by the equipment manufacturer to ensure the connection accommodates thermal cycling without vibrating loose.

Standard Torque Specifications for Mechanical Lugs

Oxidation Prevention

When exposed to air, bare aluminum instantly forms a microscopic layer of aluminum oxide. Unlike copper oxide, which remains somewhat conductive, aluminum oxide is a highly effective electrical insulator. If left untreated, this oxide layer creates massive resistance at the termination point, generating extreme localized heat that can melt the insulation and ignite surrounding materials. Installers must aggressively wire-brush the exposed conductor to remove existing oxidation. The correct field technique involves applying an approved dielectric anti-oxidant joint compound (such as Noalox or Penetrox) directly to the bare wire, and then wire-brushing the strands through the paste. This removes the oxide layer while the metal is submerged, preventing oxygen from touching the bare metal before it goes into the lug.

Galvanic Corrosion

Joining dissimilar metals, specifically copper and aluminum, in the presence of ambient moisture triggers galvanic corrosion. The aluminum acts as an anode and rapidly corrodes, destroying the electrical connection. Direct contact between bare copper and bare aluminum is strictly prohibited. Installers must use dual-rated mechanical lugs (marked AL7CU or AL9CU) which are typically made of tin-plated aluminum to safely bridge the two metals. For inline splices, specialized insulated mechanical connectors, commonly referred to as Polaris lugs, provide isolated ports for each wire, eliminating galvanic interaction.

Procurement Criteria and Installation Logistics

Evaluating materials for a large-scale project requires looking beyond the raw per-foot specifications of the conductor. The logistics of the installation heavily influence the final project execution strategy.

Material Logistics vs. Installation Labor

While bulk aluminum conductor is substantially lighter, it introduces secondary logistical requirements. The necessity of upsizing the AWG means procuring larger diameter conduit, wider sweep elbows, and larger pull boxes to accommodate the increased bend radius. If you attempt to pull a 4/0 aluminum cable through a standard tight-radius elbow designed for smaller copper, you risk tearing the XLPE insulation. Additionally, dual-rated mechanical lugs, anti-oxidant compounds, and specialized splicing blocks add to the material manifest. Labor hours must also be adjusted. Terminating aluminum requires precise preparation: stripping the jacket without nicking the soft metal, wire-brushing the strands through the paste, and utilizing a torque wrench. This meticulous process takes longer per termination than standard copper connections, requiring project managers to balance material efficiency against increased termination labor time.

Compliance and Inspection Readiness

Passing electrical inspections with aluminum wiring requires visible proof of proper installation techniques. Inspectors scrutinize termination points specifically. A successful inspection checklist includes verifying that the correct AWG size is matched to the breaker rating, ensuring anti-oxidant paste is visibly oozing slightly from the mechanical lugs, checking that all lugs are explicitly marked AL7CU or AL9CU, and confirming that conduit fill ratios have not been exceeded. Providing the inspector with documentation of the torque specifications applied to main service lugs further demonstrates professional compliance and ensures immediate approval.

Conclusion

Aluminum conductors provide a highly effective, structurally efficient solution for heavy feeders, service lines, and high-amperage distribution when engineered and installed to strict modern standards. To ensure a safe and compliant installation, follow these critical next steps:

• Calculate your exact continuous and non-continuous load requirements to establish a baseline ampacity before selecting a conductor gauge.

• Consult local Authority Having Jurisdiction (AHJ) amendments to verify specific regional restrictions on conductor materials.

• Procure dual-rated termination hardware, calibrated torque tools, and approved anti-oxidant compounds prior to beginning the installation.

• Verify the physical dimensions of the selected conductor against NEC conduit fill tables to ensure adequate raceway sizing.

FAQ

Q: What size aluminum wire is required for a 200-amp service?

A: For a standard residential dwelling where the service supplies the entire load, NEC 310.12 allows the use of 4/0 AWG aluminum for a 200-amp service entrance. For commercial applications or subpanels not supplying the entire dwelling, 250 kcmil aluminum is typically required to meet the 200-amp rating.

Q: Can I use aluminum wire for standard household outlets?

A: Modern electrical codes generally prohibit the installation of new aluminum wire for standard 15A and 20A branch circuits. Copper is the mandated standard for these small-gauge applications. Existing legacy aluminum wiring can remain but must be maintained using specialized CO/ALR devices or AlumiConn retrofits.

Q: Why does aluminum wire need anti-oxidant paste?

A: Bare aluminum oxidizes instantly upon exposure to air, forming a layer of aluminum oxide. This oxide is an electrical insulator that causes high resistance and dangerous heat buildup at connections. Anti-oxidant paste seals the metal from oxygen, maintaining conductivity and preventing fire hazards.

Q: How do I connect copper and aluminum wires safely?

A: Never twist them together with a standard wire nut. You must use dual-rated mechanical connectors (marked AL7CU or AL9CU), insulated multi-tap connectors (like Polaris lugs), or specialized AlumiConn terminals. These devices physically separate the metals to prevent galvanic corrosion.

Q: What is the difference between 1350 and 8000 series aluminum?

A: The 1350 series is 99.5% pure aluminum, offering high conductivity but extreme softness, making it suitable only for utility and overhead lines. The 8000 series includes strengthening alloys (like iron and magnesium) to prevent cold flow and thermal loosening, making it the only code-approved choice for building wire.

Q: Does aluminum wire require larger conduit than copper?

A: Yes. Because aluminum is less conductive than copper, you must use a larger wire gauge to carry the same amperage. This larger wire diameter takes up more physical space, frequently requiring a step up in conduit size to maintain safe NEC fill capacity limits.
